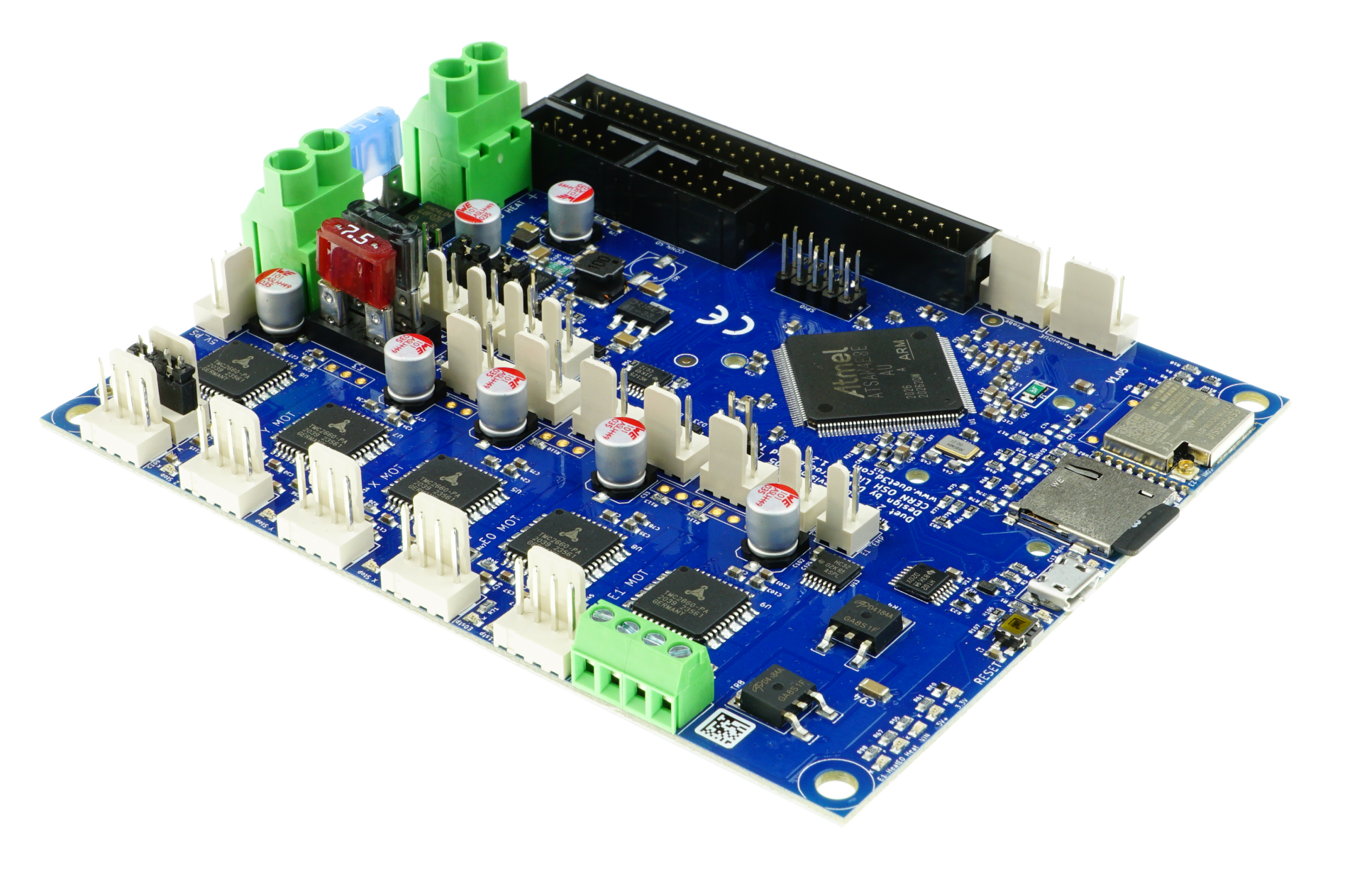

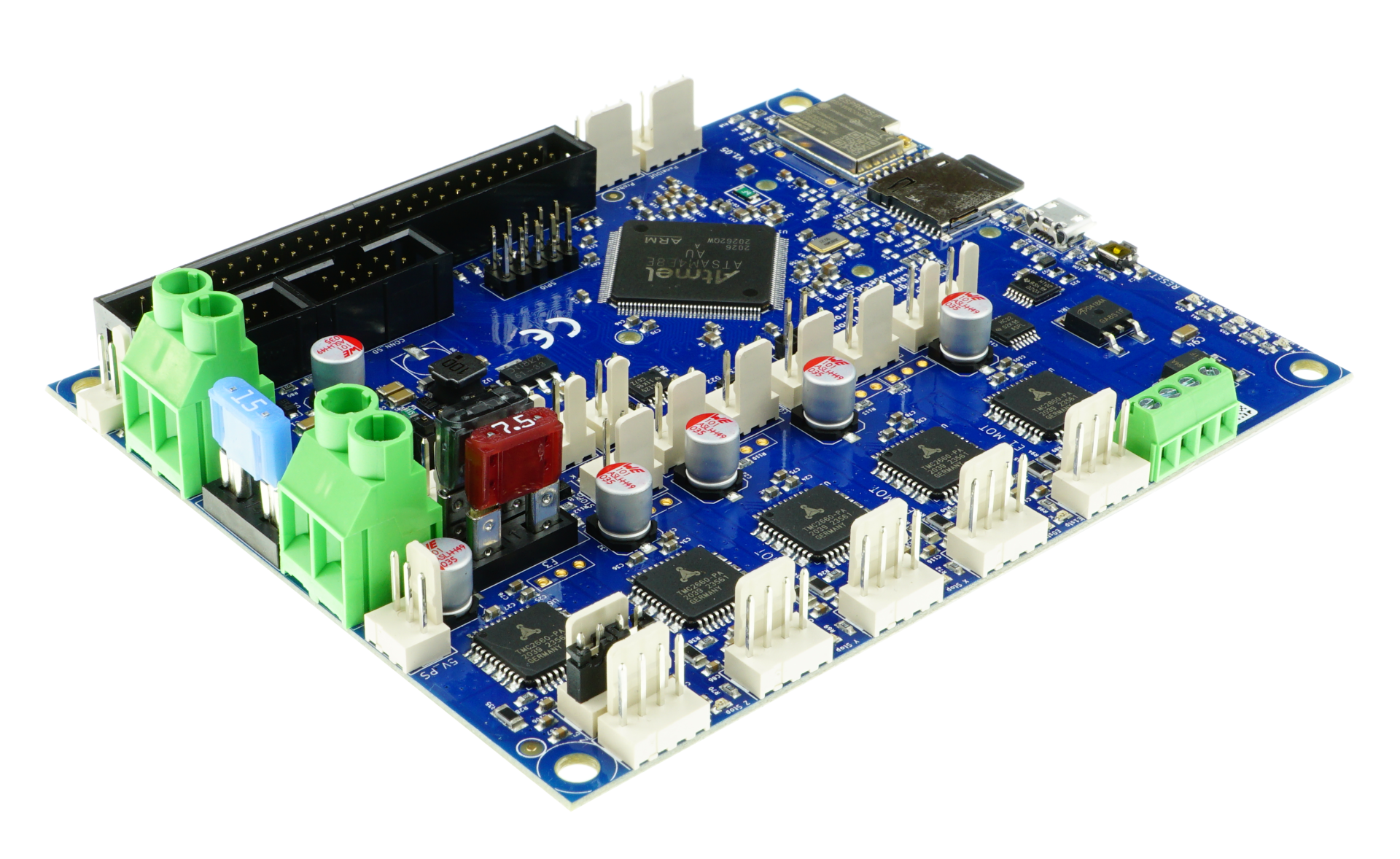

Duet 2 Wifi

First released in 2016, this is the latest revision of the established Duet 2 machine controller. Using our advanced and regularly updated RepRapFirmware it is capable of controlling 3D printers, CNCs and a wide range of other machines. It has been the controller of choice for hobbyists and advanced machine designers alike since its launch. As of January 2024 the Duet 2 controller is not recommended for new designs. The Duet 2 Wifi with Internal Antenna is End Of Life and no longer available directly from us, although some reseller may have limited stock. It is recommended to use one of the Duet 3 range for new designs going forward.

Duet 2 Wifi is an advanced 32 bit electronics for the control of 3D printers and other CNC machines. It has the same features as the Duet 2 Ethernet other than providing a WiFi connectivity rather than ethernet. Full feature description is available in our documentation : in summary:

• Powerful 32 Bit Processor
• Dedicated Wifi module
• Super quiet TMC2660 stepper drivers, up to 256 microstepping.
• High speed SD card and support for a second SD external card if required.
• Dual extruders on the main board, up to 5 more extruders on the expansion board .
• High Power rating: Each stepper driver is capable of 2.8A motor current, currently limited in software to 2.4A. The bed heater channel is specifically designed for high current (18A).
• Connect via PC, tablet or smartphone on the same network to the on board web interface.
• Setup your printer and update the firmware through the web interface .
• All common 3D printer geometries are supported
• Expandable up to 7 extruders with Firmware support for mixing nozzles and remapping axes to use high power external drivers.
• Support for the PanelDue : a full colour graphic touch screen
• Support for DC42’s IR Z probe and the Duet3D Smart Effector for delta printers.
• Provided with Molex compatible plugs and crimps as well as ferrules for power and heater terminals.
